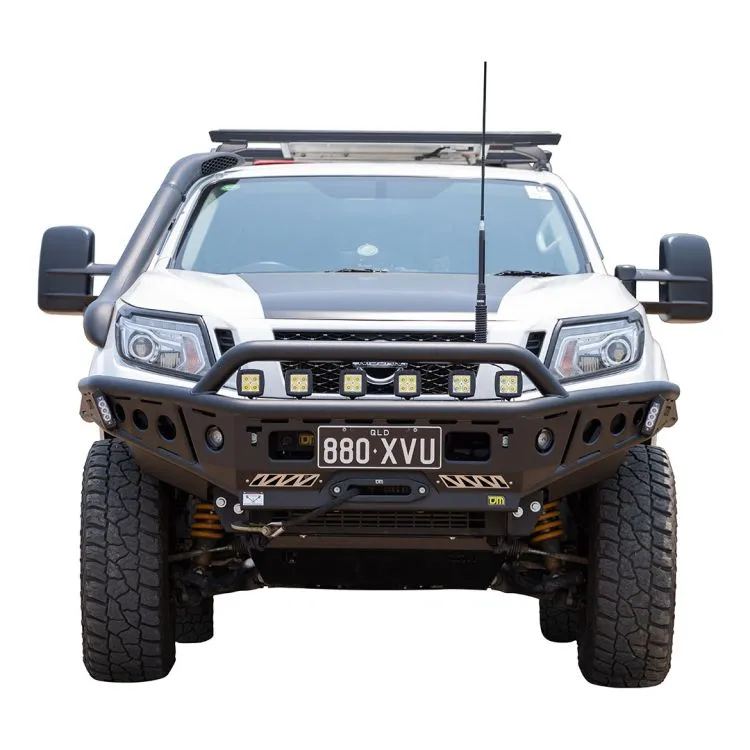

TJM CHASER BULL BAR BLACK STEEL
SKU
070SB22N10R
$2695
RRP, Excludes Fitment and Supplementary kits based on model
- NISSAN NAVARA NP300 08/15-11/20 ST-STX King C/C & P/Up
- NISSAN NAVARA NP300 05/15-11/20 SL-ST-STX-N-TREK 4Dr P/Up
| Weight | 82.000000 kg |
| Length | 710 mm |
| Width | 2080 mm |
| Height | 880 mm |
FEATURES:
| Material: | Textured Black Powdercoat Steel |
| Size: | 63mm Upper Tube, 50mm Angled Lower Tube |
| ADR: | Airbag Compliant. |
| Suits: | Wide body models |
| Tech: | Fitment of a TJM FPS may impede upon the field of view of Nissan's Around-View Monitor. Additional driving lights may further impact the field of view |
| Winch: | Integrated mount rated to 9500lb/4300kg |
| Recovery: | Integrated 8000kg Rated Recovery Points, Hi Lift Jacking Points |
| Indicators: | LED indicator lamps required (076SLKIT001) |
| Lights: | Optional Off-road work lights (033CS89LED)) Dual mounting tabs on upper hoop to mount single bolt drive lights. Suits an LED lightbar up to 900mm long underneath upper hoop |
| Aerial: | Dual Aerial Tabs |
- Approximate Fitting Time: 4.5 hours
- Suggested Fitting Cost: $652.50
- Bumper Cut
- Chaser bar is supplied with a high-strength winch frame and dual wing guards
- 077SBFUG10R: Optional front underbody guard is recommended fitment
- 076SLKIT001: Requires LED indicator lamp kit
- 033CS89LED: Optional Off-road Worklights kit
- Recommended Winches: 947TJMTQ95DAA or 947TQBK95DAA 9500lb Synthetic Rope or 947TJMTQ95S 9500lb Steel Rope
- Distance forward from bumper: 143mm Distance between top hoop: 900mm
- Fitting Instructions
Suggested time for fitment and fitment costs are an approximate figure only, actual labour costs may vary. See in-store for details.
